EHBP-04 L-Shaped Wet Bar

Full Wet Bar with drink prep counter space. Easy to resizing using the CHBD tool.

L-shaped Wet Bar with Keg Box

L-Shaped Wet Bar Design:

This L-Shaped Wet Bar is one of our most popular projects. The EHBP-04 model is similar to the EHBP-03 Straight Keg Bar with its drink prep area and optional keg box area.

You can also opt to place a full stand-up kegerator in the available keg box space.

Site membership also includes our popular EHBP-09 45-degree corner wet bar design.

DIY Integrated Keg Box:

The optional keg box is built in much the same manner as the EHBP-03 model. The biggest difference is that this model has a higher space that better fits larger 1/2 barrels and does not require a low-profile keg coupler.

l-shaped wet bar

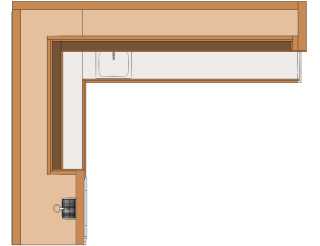

EHBP-04 plans overview

EHBP-04 Wet Bar Project Details

Plan Number: EHBP-04
L-shaped Wet Bar w/Keg Box
Skill Level:
Novice – Intermediate
Length: ~ 96″ x 120″
Symmetrical left or right layout.
Estimated material cost: ~$250+
Plan Size: 45 pages
Printable Adobe PDF

This project includes details on how to build the integrated keg box, plus sources for parts builder support. Requires optional draft beer parts. An optional kegerator unit can be used in section A of this project.

Design Options:

Can be built using simple, inexpensive dimensional lumber armrests or upgraded to Chicago Style armrest moldings for the professional tavern look. Those with a table saw and router may want to try making your own DIY cove cut bar rail molding with our included EMBP-06 project. The bar back can be left open for easy access storage or closed up with doors and locked for secure liquor storage.

Ample dimensions:

The EHBP-04 is a full-sized bar designed for maximum seating and comfort, just like the local pub. Features a wrap-around beer gutter, footrest, plenty of seating space, a large work and drink prep area, and optional built-in Keg Box and sink. Suitable for home or small commercial use. Download Plans Now

adobe PDF formatIncludes material list, cut list, framing details, and full assembly drawings. PDF format plans are compatible with any modern printer. Requires the latest version of Adobe Acrobat Reader.

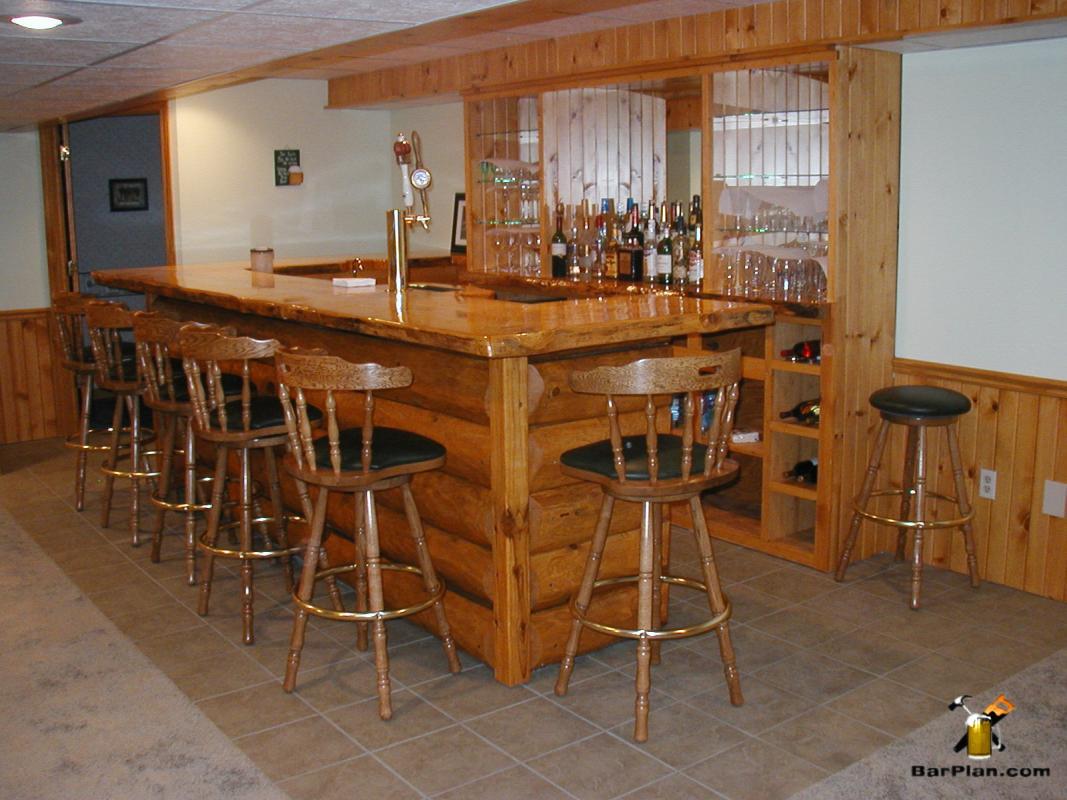

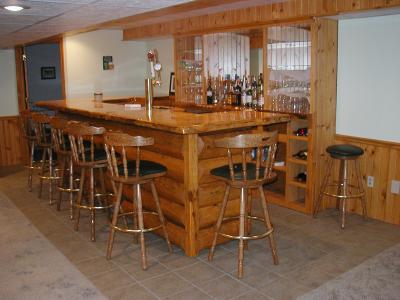

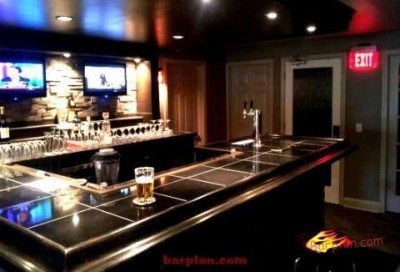

This full cocktail bar features Chicago-style arm rail molding and a DIY Keg Box built right into the framework. Add your choice of draft beer tower and tap head to complete the system.

EHBP-04 L-Shaped Wet Bar 1

The EHBP-03 requires tap tower parts from our preferred supplier MicroMatic. Parts include:
Tapper Tower – Beer Keg CouplingCO2 tank and regulatorBeer line and optional drip tray

The biggest advantage of making a do-it-yourself-style kegerator is the ability to store multiple kegs for your favorite flavors and service it yourself.

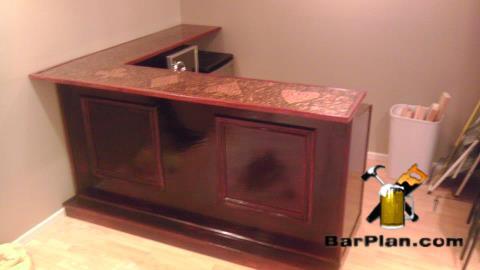

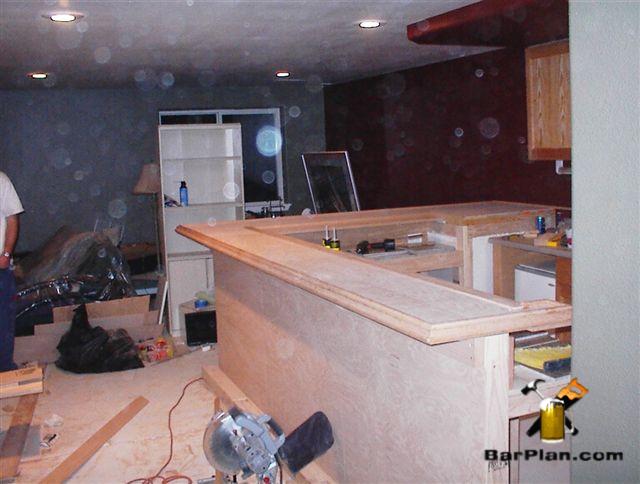

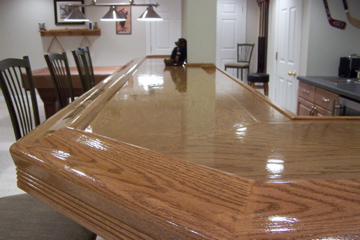

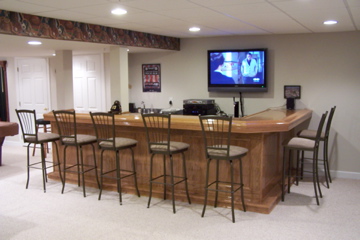

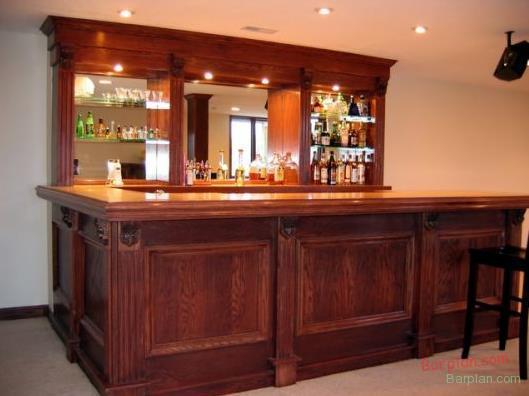

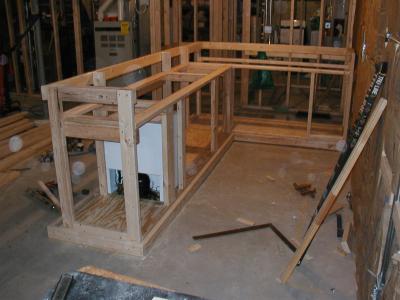

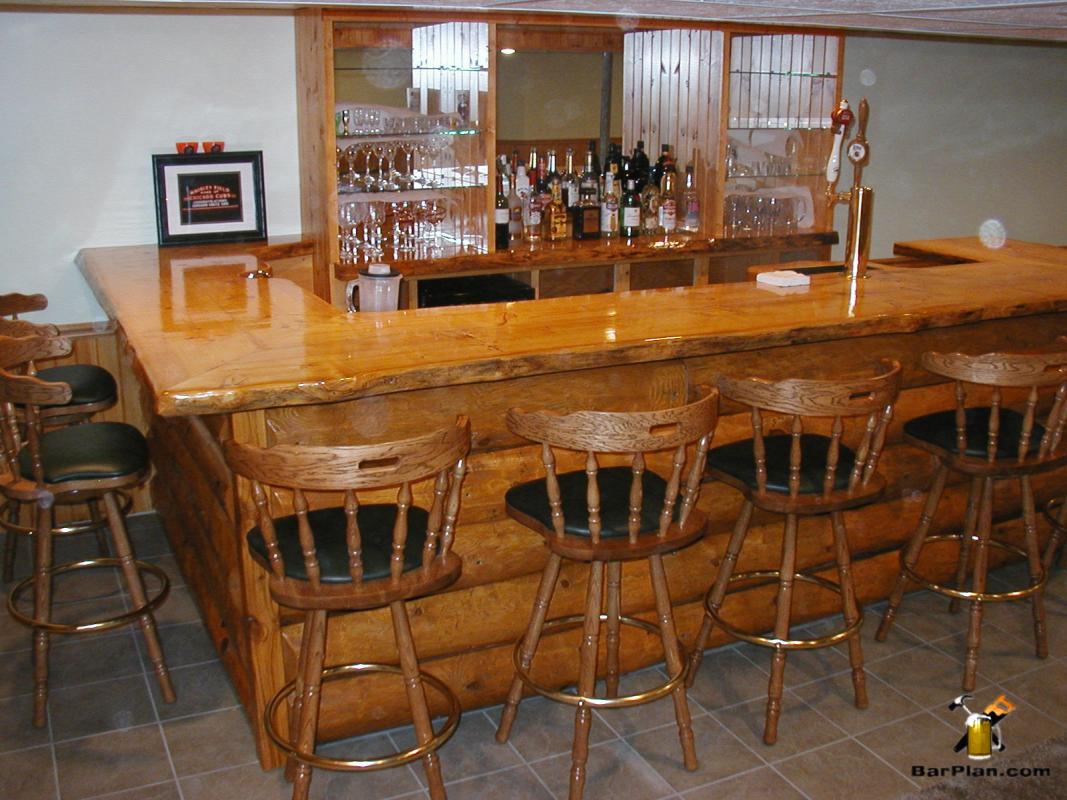

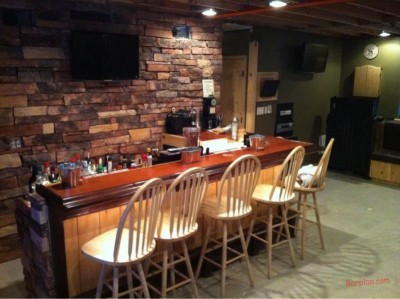

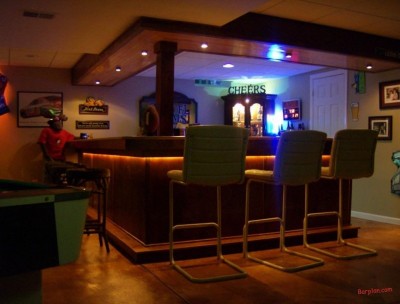

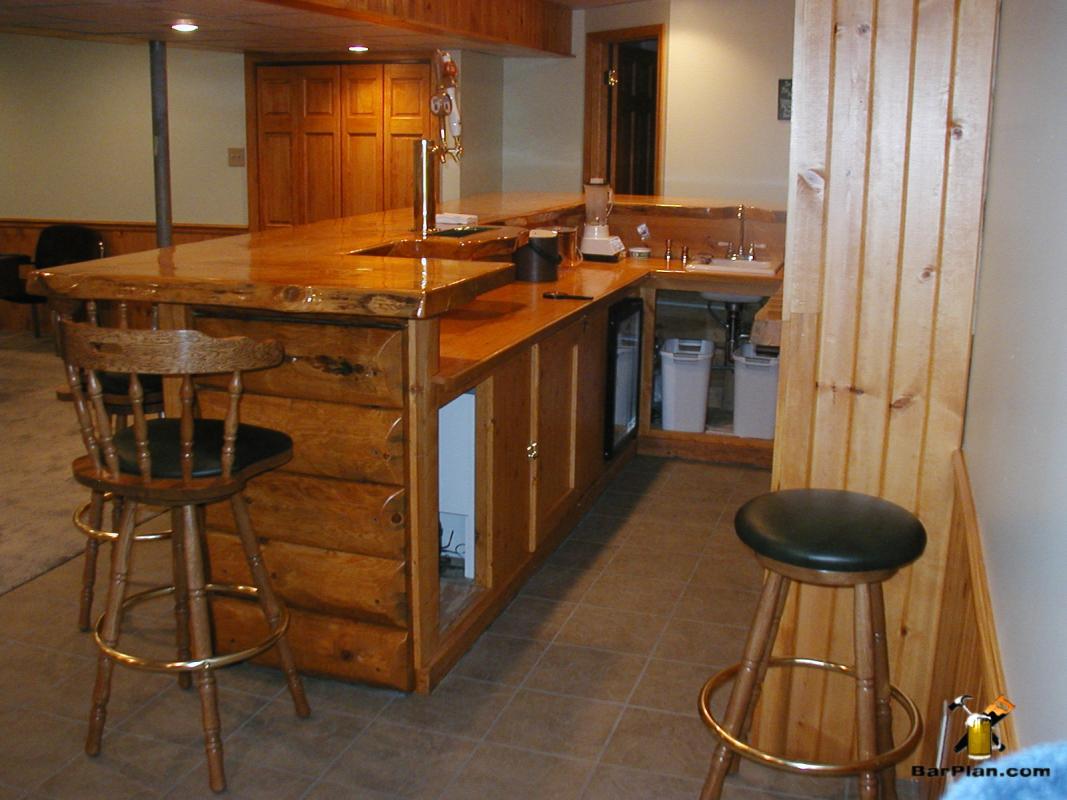

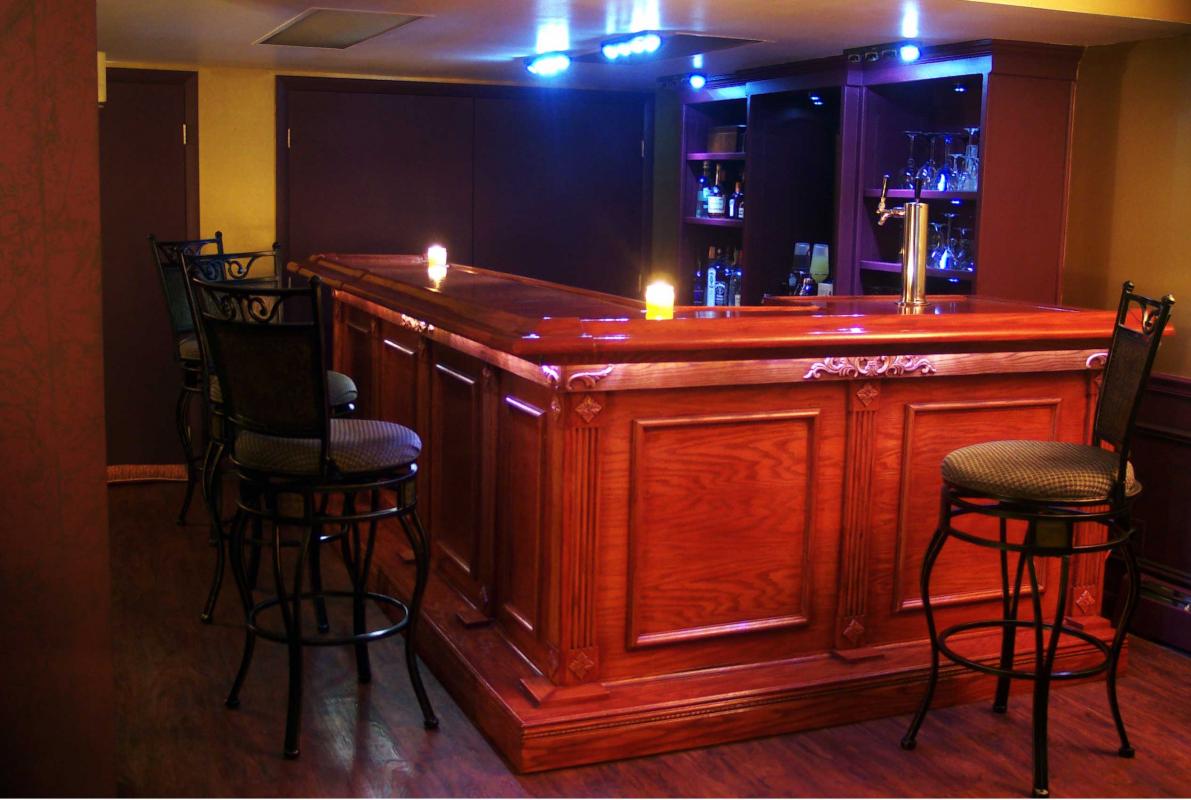

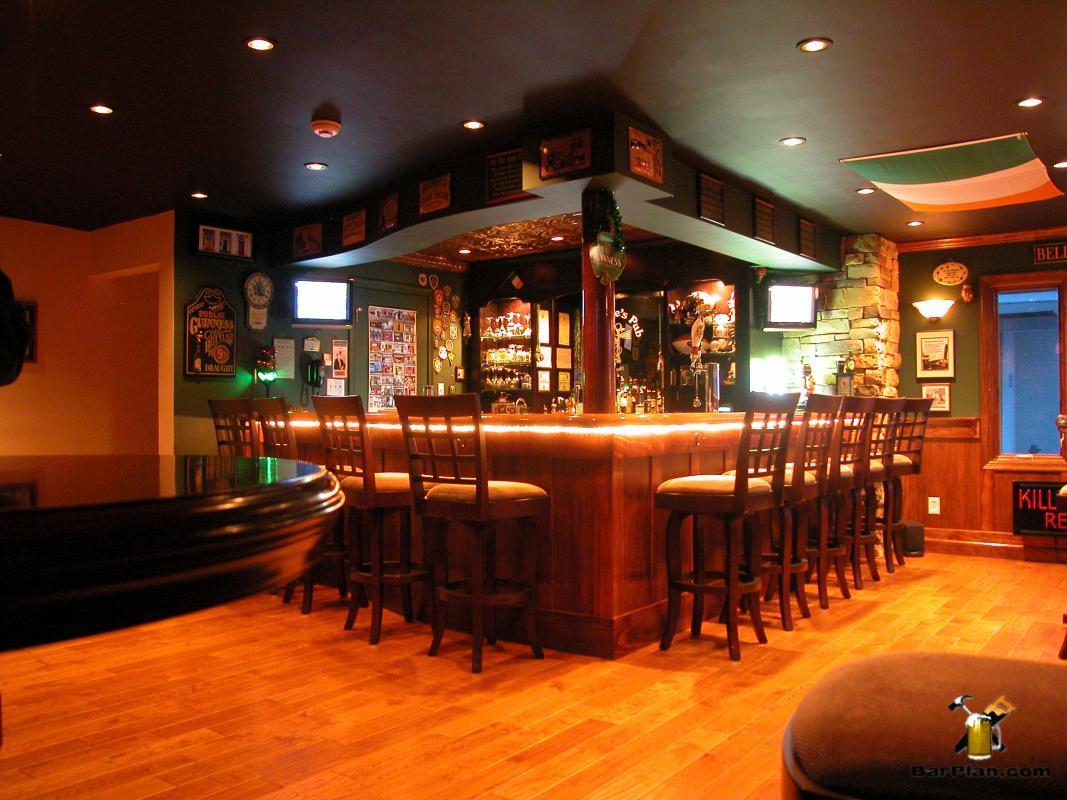

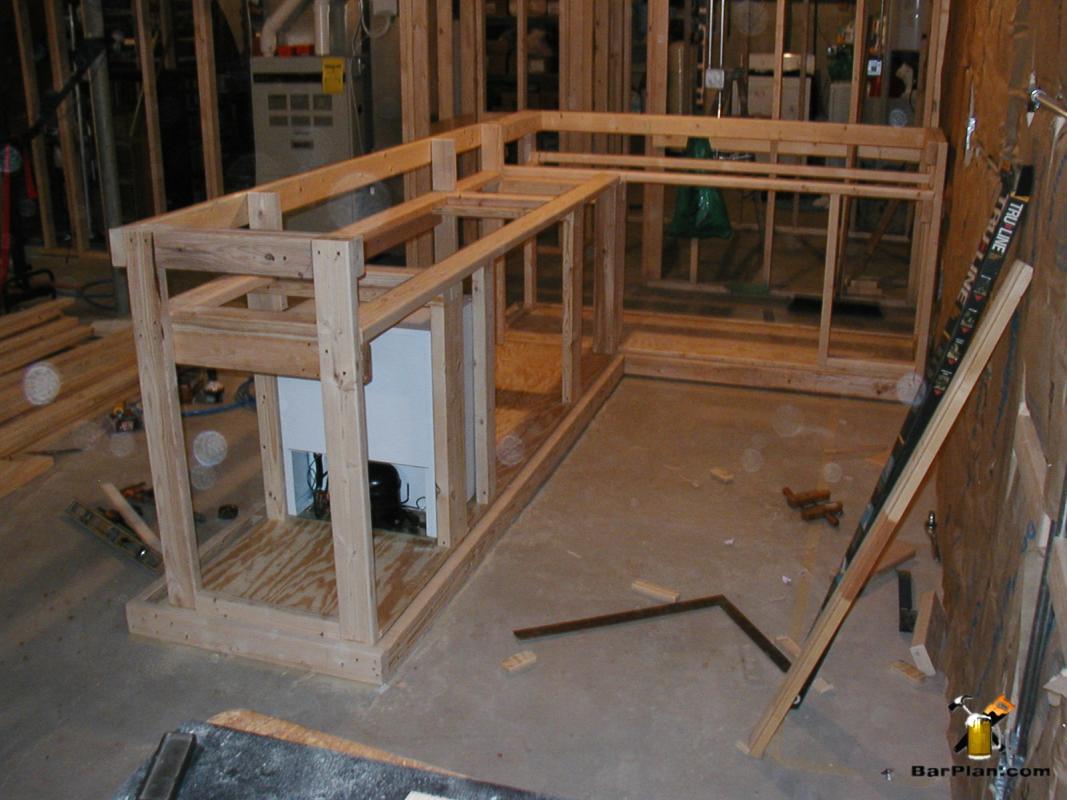

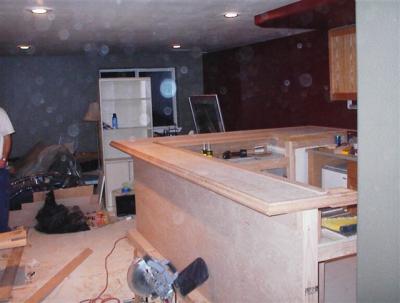

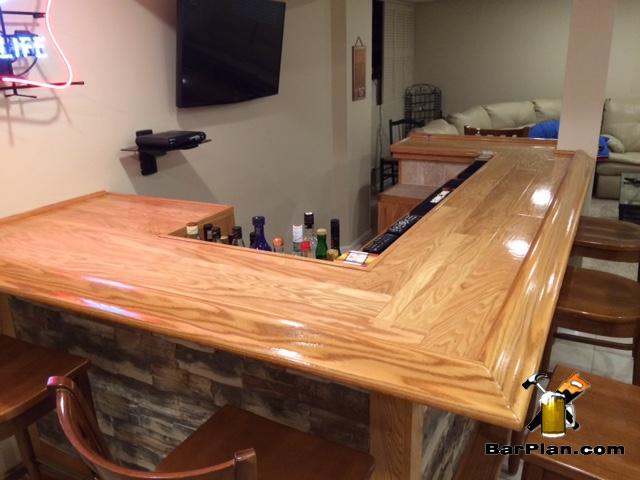

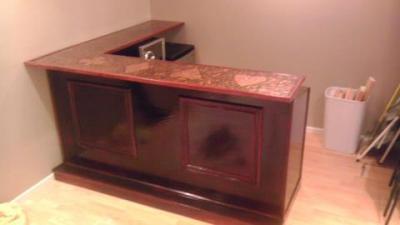

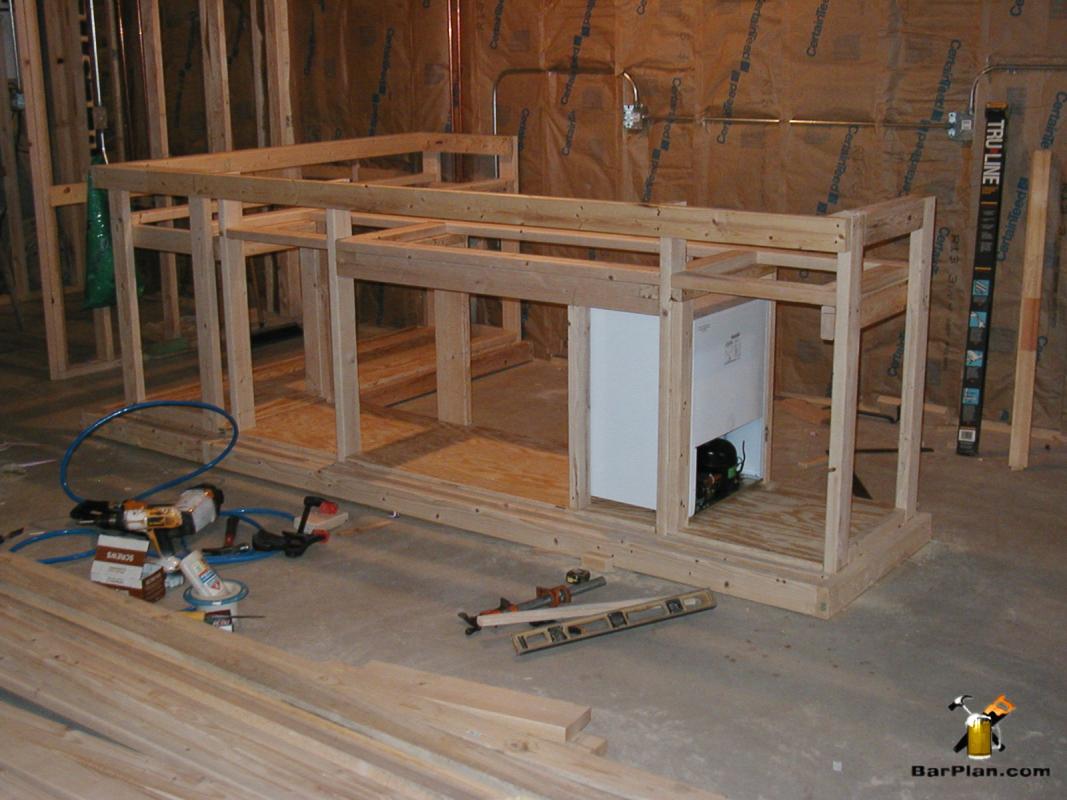

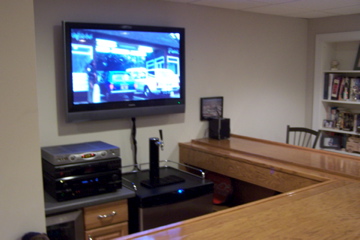

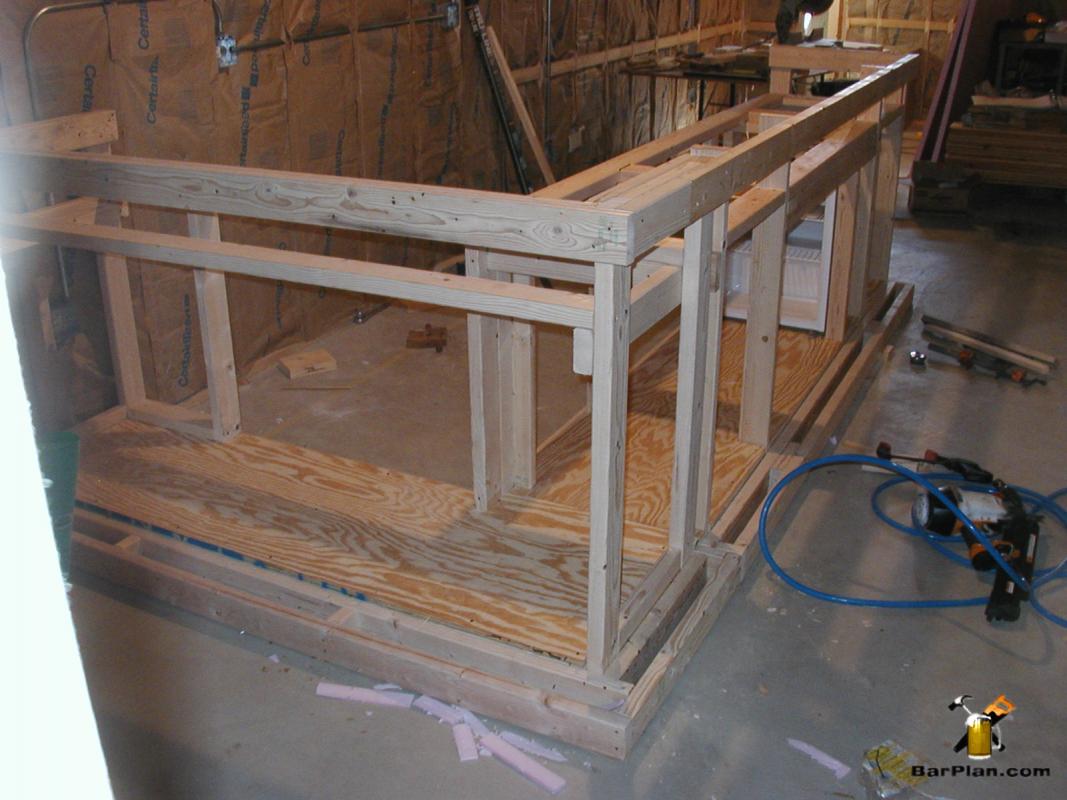

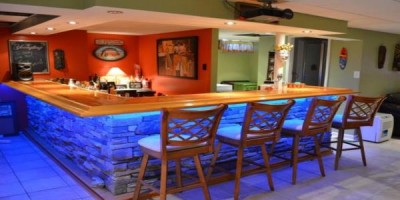

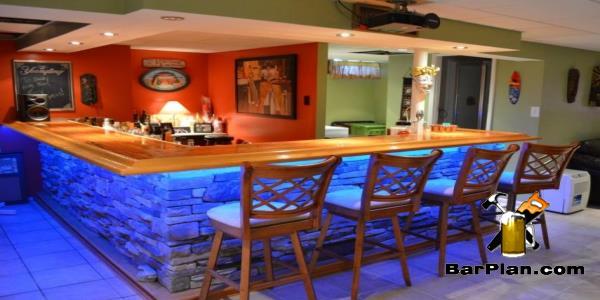

EHBP-04 Complete Project Samples – Projects built BY YOU using this plan!

Check out the rest of the included Home Bar Designs.

See Best Selling Kegerators or links below…

Optional Kegerator units for use in section A

[amazon_link asins=’B00YW50UX6,B00655HJJE,B014LGBJVC’ template=’ProductCarousel’ store=’easyhomebarplans-20′ marketplace=’US’ link_id=”]

Finishing off the project with bar stools: No home bar is complete without a nice set of bar stools. We’ve followed the online bar stool retailers for over 15 years. Amazon now offers the best deal in quality bar seating. Shop for Bar Stools

bar height stools

This bar requires “Bar Height” stools. Click image for models.
