Combination Bar Layout:
This custom bar layout is created using either of the following plan sets…
Combine any of the with the EHBP-11 3 in 1 Oak Bar Back . and you have the EHBP-10 Combination bar layout.
Changes can be made to the 45 degree L-shaped bar and the EHBP-11 using the Custom Home Bar Design Tool.
Help from our Forum:
Being that this project is so variable and can include several different plans, this project is FORUM based and offered as a guide to laying out your own custom bar using one of more of the plans offered on our site. Surprisingly most of our members figure it out on their own, but we’re here to help in case you run into a snag.
The Builder’s Forum include photos and personal help from fellow members and our designer. The Builder’s Gallery also provides thousands of layout ideas that others have already done. Maybe you can out do them all! Order Access to the Member Area and Start Building Today. Join Site
Plan Number: EHBP-10
Model: Combo Wet Bar Pub & Bar Back Project
Skill Level: Intermediate
Length: ~ 96″
Estimated cost to build: ~$600 varies wildly
depending upon configuration, materials and budget.
Plan Size: variable – requires 8’x12′ open floor space.
Uses existing plans – full support and addendum’s located in the Builder’s Forum.

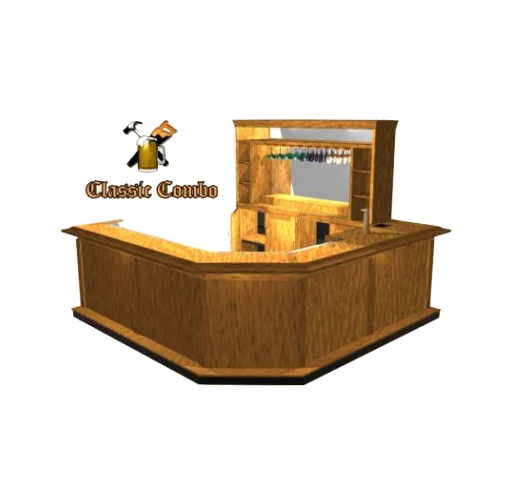

A complete modern classic home bar layout.
The Combo Bar Pub Project is forum based and simply involves building the bar and bar back and mating them to create the combination layout. While this project might look like it requires a high degree of woodworking skill, it does not. This project is intended for anyone with basic woodworking skills but requires a bit more attention to detail than our original easy designs.
Select either the L-shaped or 45 degree bar plans, size it to your available space then match it up with our customizable bar back project.
Bar accepts standard residential sized kitchen sinks, ice bins and speed rails and all standard kitchen appliances such as dishwashers, Kegerators and compact or medium sized refrigerators and wine chillers.
Easily build optional storage drawers, shelves bins & cabinets.
Pre-made bar arm rail moldings are recommended for this project.
Large Seating Area:
8 1/2 feet x 10 feet! That’s 18 feet of seating space! Left side of bar intended to be attached to a wall. Design is symmetrical, works for either right or left handed layout. End cap design is variable – shelving options are variable. Bar back height and section sizes are variable.
Bar skeleton framing allows you to run electrical, water and drain lines behind the bar walls and floor.

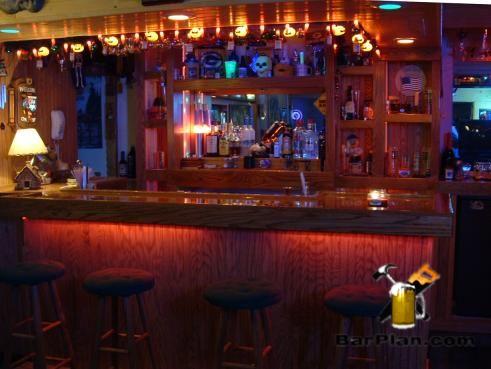

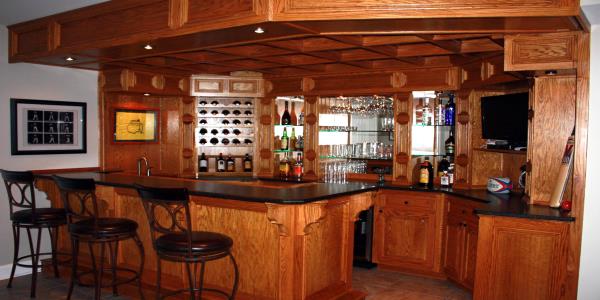

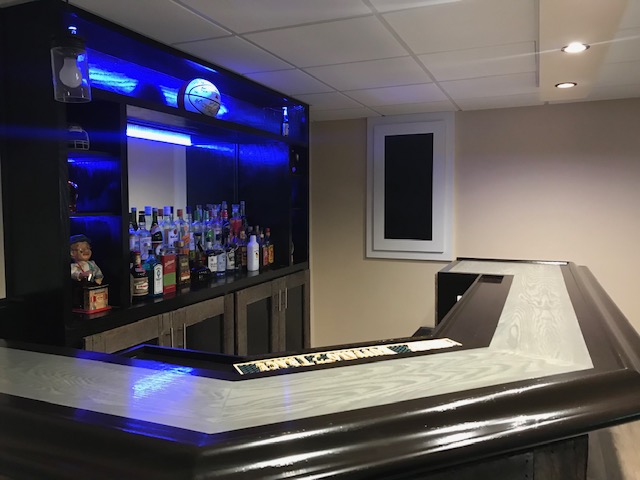

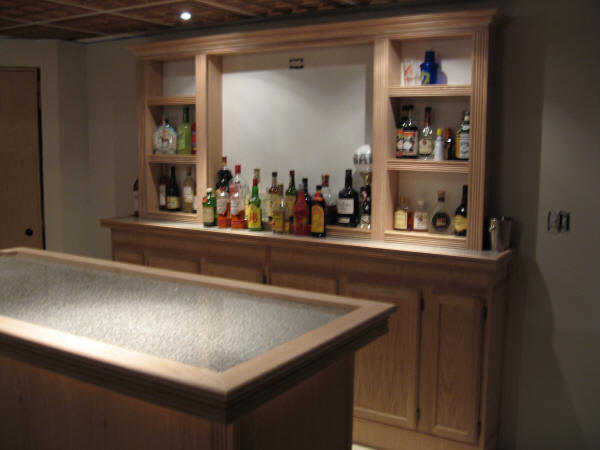

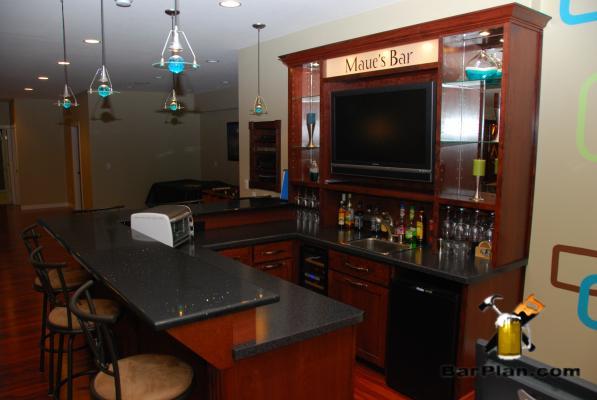

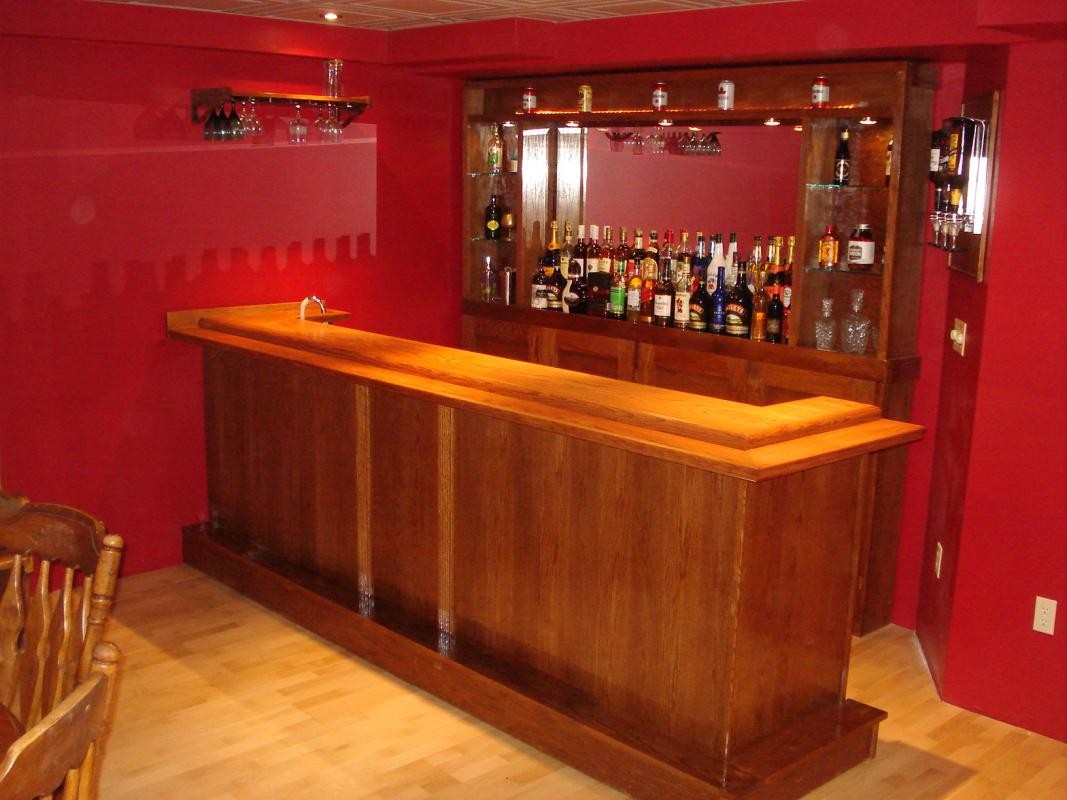

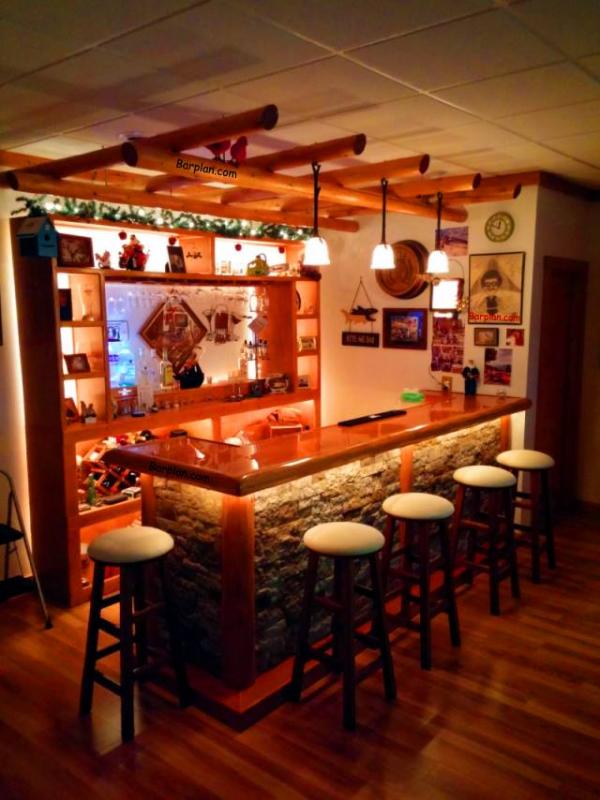

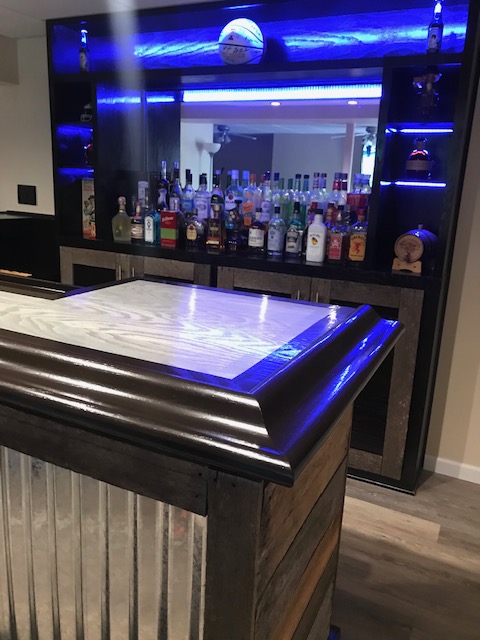

Just a few samples of combination layouts built by YOU! Full sized images in the Builder’s Gallery
All bar plan blueprints are available for instant download.
All plans documents are in universally accepted Adobe PDF format.
Full access to Forum, Gallery and Custom Home Bar Designer Tool included with your membership. Join Today
Check out the rest of the included plans in the Bar Project Catalog.
