45 degree plan

Viewing 2 posts - 1 through 2 (of 2 total)
  • Author
    Posts
  • #19153 Score: 0

    Need a plan for a layout like this (sketch attached)….anyone?

    #20761 Score: 0
    mckdelbu
    3 pts

    nice bar nook! – I’d suggest starting with a wall along the dotted line that would support the bar top, then a modular cabinet approach to the bartender side.
    Take a look at the EHBP-08 and it’s construction and you’ll get what I mean.

    I’m focusing on the EHBP-10 right now and that is exactly the approach you need here.

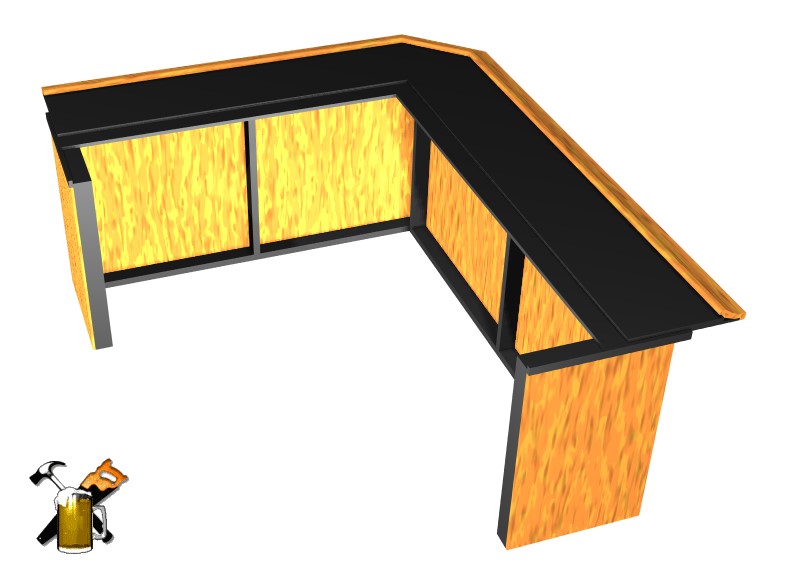

    Build the wall
    [attachment=2:1drrvxef]modular_1.jpg[/attachment:1drrvxef]

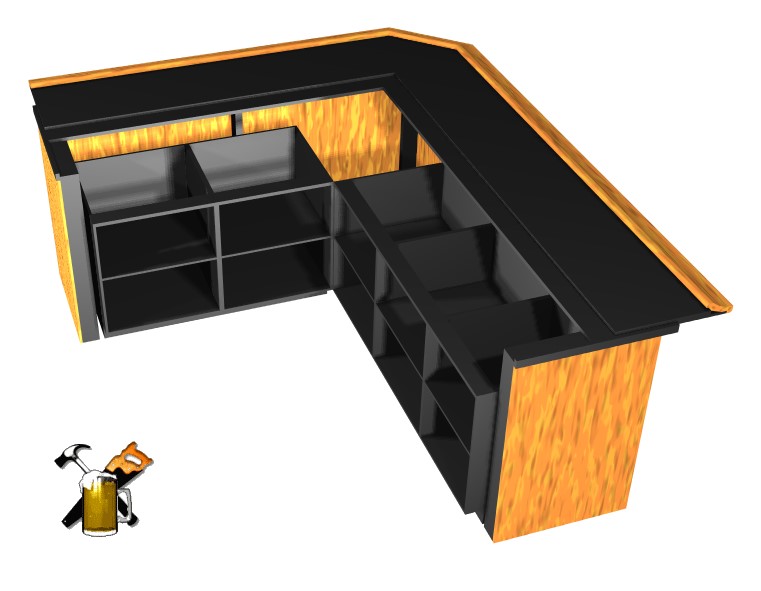

    add the cabinets
    [attachment=1:1drrvxef]modular_2.jpg[/attachment:1drrvxef]

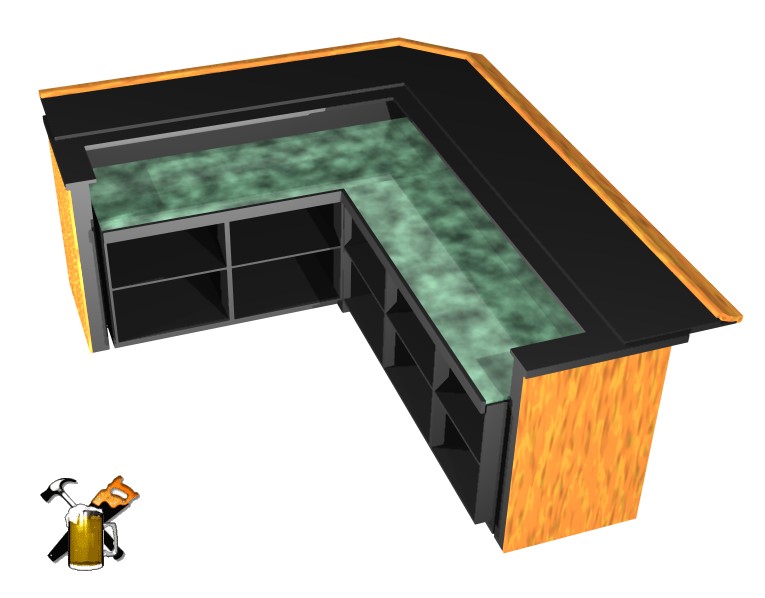

    place the countertop
    [attachment=0:1drrvxef]modular_3.jpg[/attachment:1drrvxef]

    If you can give me the length of those two lines and the correct angle (looks like 45 degrees to me), perhaps I can whip you up a basic drawing tomorrow.
