Lift Gate Instructions

Tagged:

Viewing 3 posts - 1 through 3 (of 3 total)
  • Author
    Posts
  • #19503 Score: 0
    mckdelbu
    3 pts

    Building a lift gate is very simple.

    You have two basic configurations:

    A: Drop down gate – This is simple a section of the bar that lifts up to open and drops down against a stop to close.

    B: Lift gate – this is a door that drops down to open and lifts up to close. This method is more complex because it requires a simple locking mechanism.

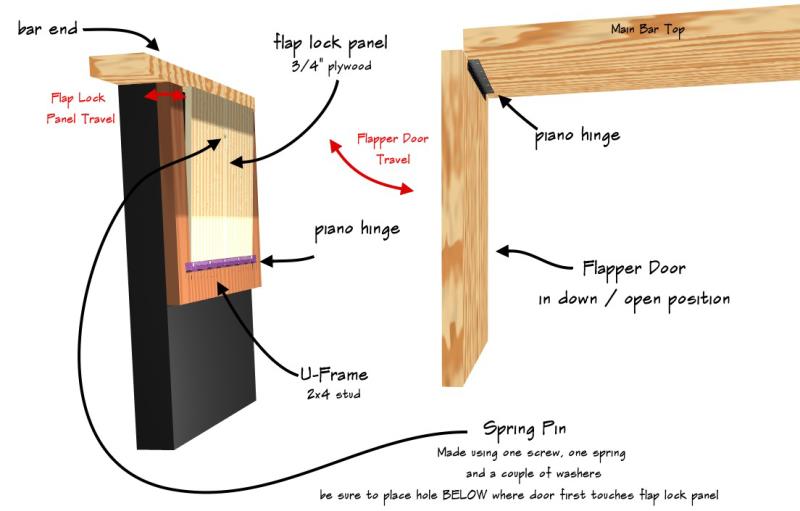

    See image below for details…

    #32954 Score: 0
    bpwdmin
    Keymaster
    2 pts

    Not a lot of info to go on, but a lift gate is very easy to build. The drop down gate is a little tougher to build because you have the latching mechanism and you must source the parts for those. Springs can be found at any hardware store. You will have to test it to be sure you get proper compression to be able to push the locking mechanism OUT with enough force, but not too much. Likewise, piano hinges are recommended.

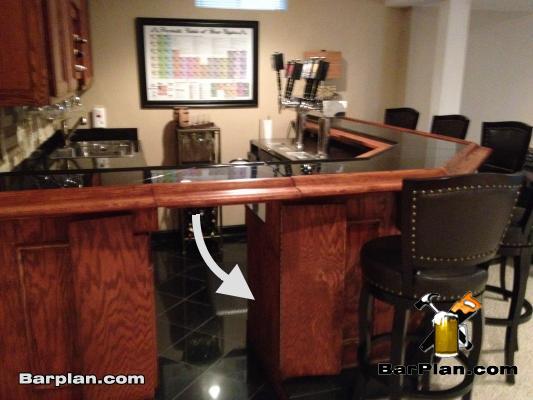

    To set the pressure for the locking mechanism, you can just affix a fine tuning blocking board to the top of the flip lock push panel to set the length in the up/lock position. You would place it approximately where you see the upper dark shadow in the image. You would place the door in the closed position, then attach the fine tuning block. You can bevel the top slightly for a smooth locking fit. A little furniture wax helps too for where the two wood surfaces meet.

    I would recommend a 1×4 pine board. This gives you the perfect pressure without having to be exact on the push panel position.

    Check out the Flapper Door page for piano hinge sources.

    EMBP-04 Bar Lift Gate – Flapper Door

    • This reply was modified 5 months, 3 weeks ago by bpwdmin.
    • This reply was modified 5 months, 3 weeks ago by bpwdmin.
    • This reply was modified 5 months, 3 weeks ago by bpwdmin.
    #37351 Score: 0
    sam2014
    Participant
    2 pts

    I think if you go to the gallery and search on “lift” or “gate” or “flapper” you might find some more examples with detail photos.
    It’s really rather simple. https://www.barplan.com/gallery
