    This is a guide to how you can build a hexagon shaped bar. It’s not a complete plan and requires a little extra material selection and planning on your part, but it’s a good start to an interesting project. With more feedback and interest, this can be developed into a full plan set.

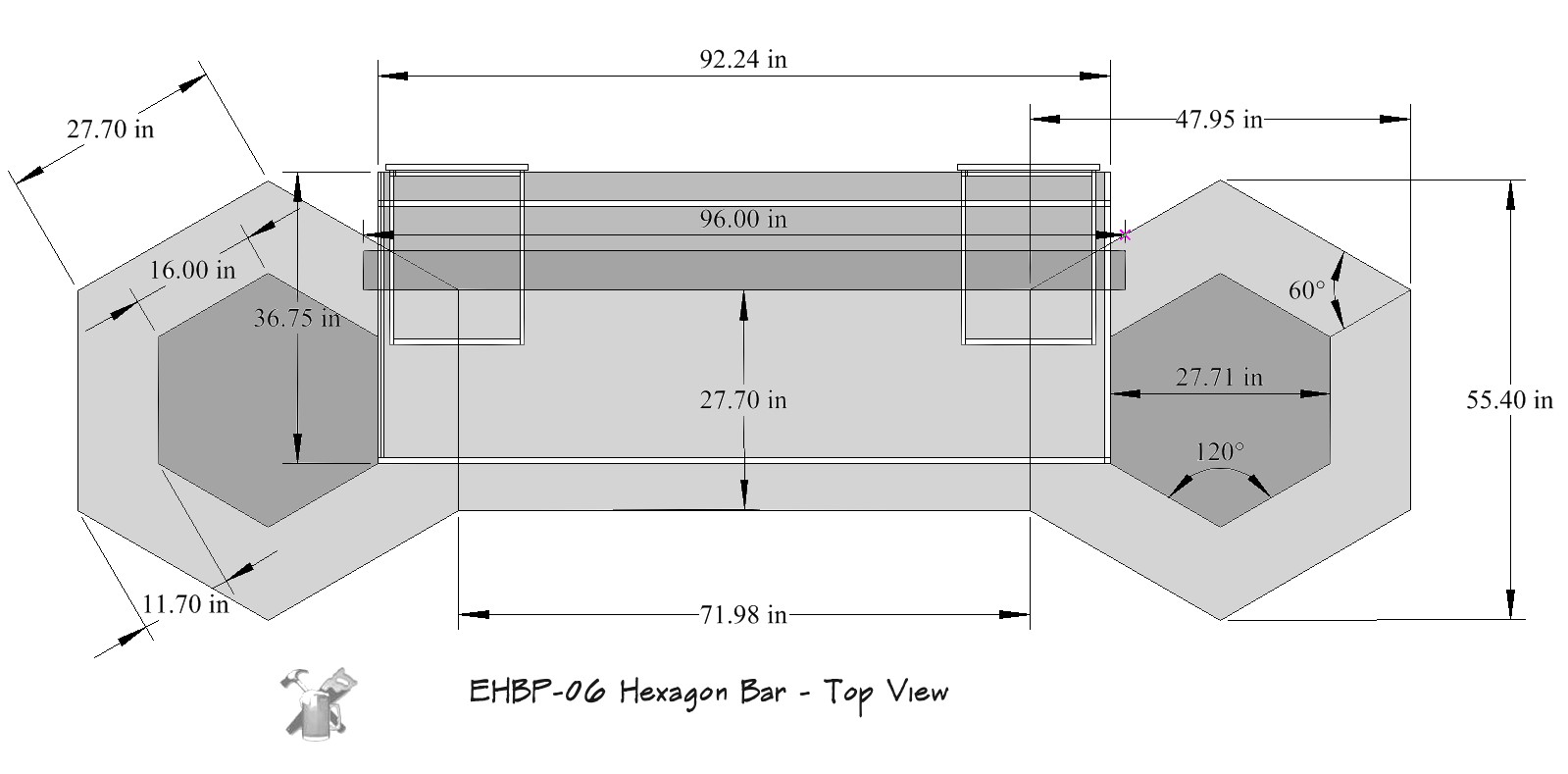

    Here is a top down view drawing in wire frame mode with dimensions. Click on images for full size.

    EHBP-06_top_view

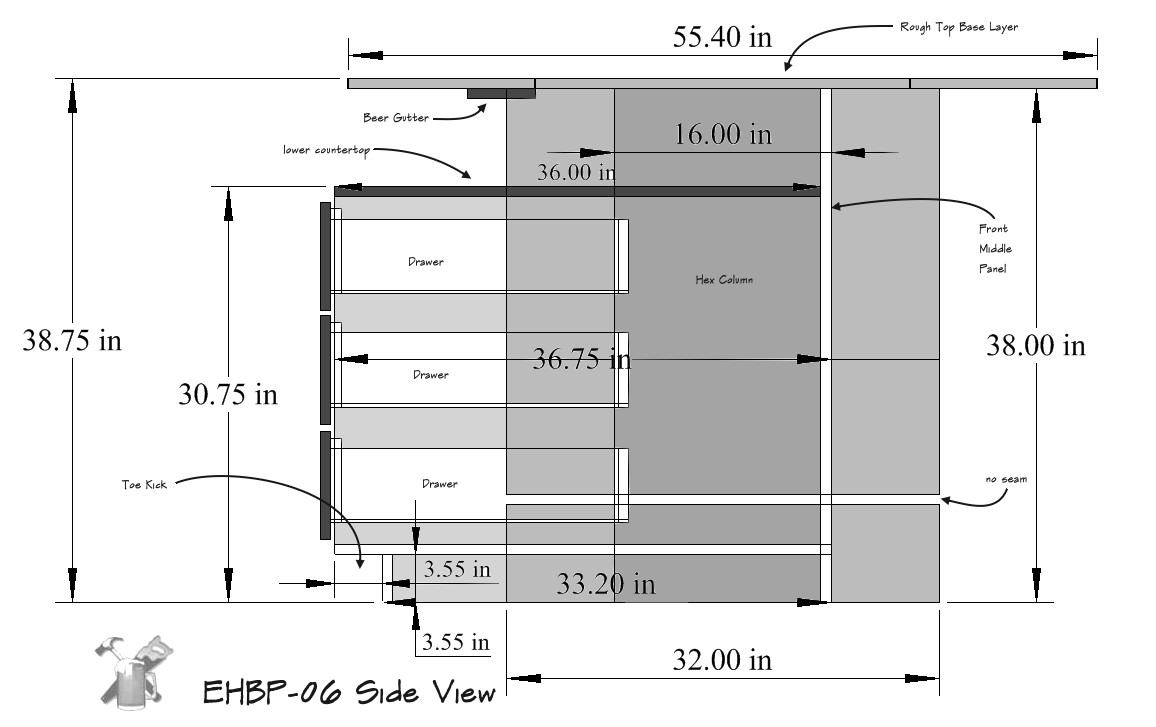

    Side view:
    EHBP-06_side_view

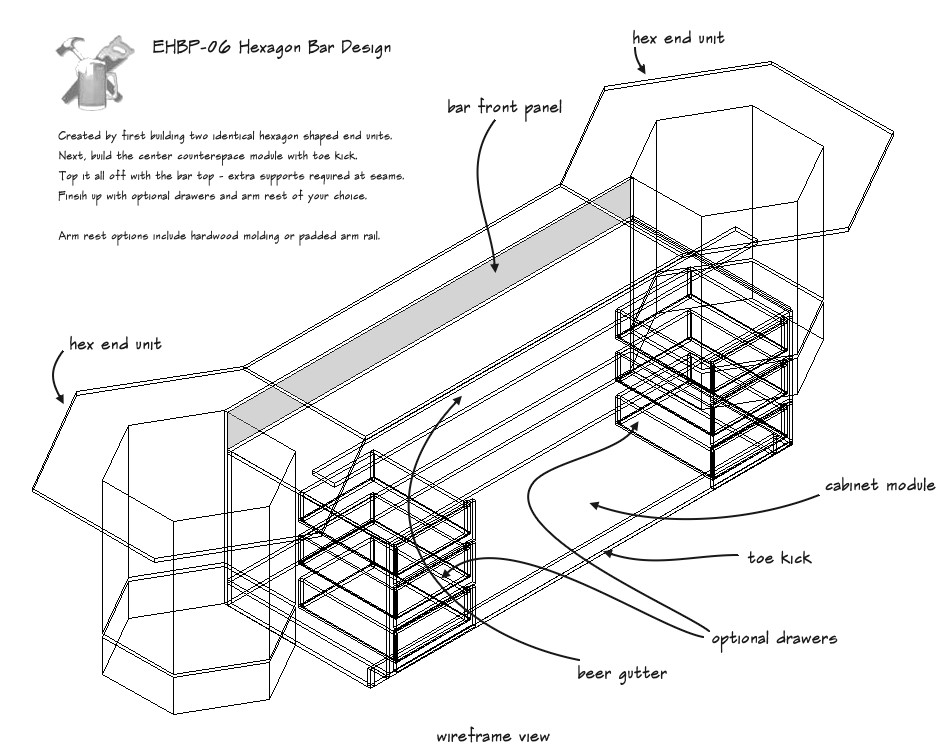

    Isometric View:
    EHBP-06_iso_overview

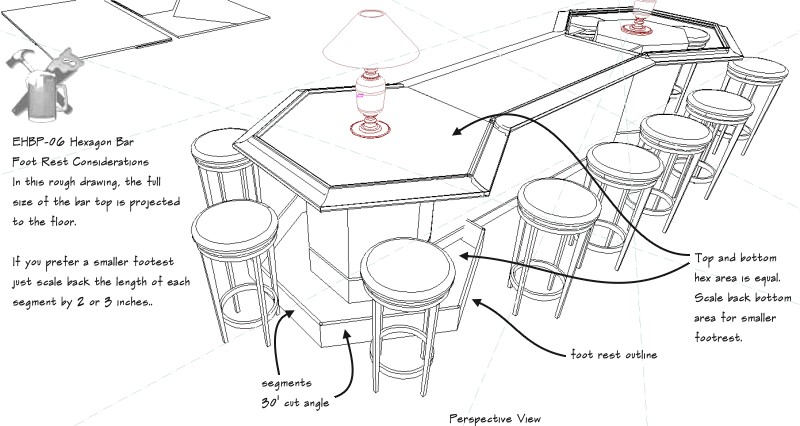

    Perspective view arm rest:
    EHBP-06_perspective_foot_arm











    Rendering:
    EHBP-06_top_view_render
