Where do I Find the Part List?

[bpwdmin]

Look right below the download for the plan set. There is a separate PDF download that is a standard printout of the CHBD, so you don’t have to mess with logging in a trying to figure out the CHBD. I’ll be merging the plans with the parts doc soon.
Here is the download page link: https://www.barplan.com/member/content/f/id/15/

[sam2014]

Some dimensions that may not be found in the standard printout or CHBD.

88 – 10” x 4.5” x .75”
89 – 6” x 1.5” x .75”
90 – 10” x 1.5” x .75”
91 – 48.75” x 25” x .75”
92 – 32.65625” x 15” x .75” ( That’s 32 21/32”, but you’ll not need to be quite that accurate))
93 – You need to measure to fit. There is a drawing in the forum.
94 – 81.40625” x 15” x .75” (That’s 81 13/32, but again, 16th or 8th inch accuracy is fine.

This post has received 1 vote up.

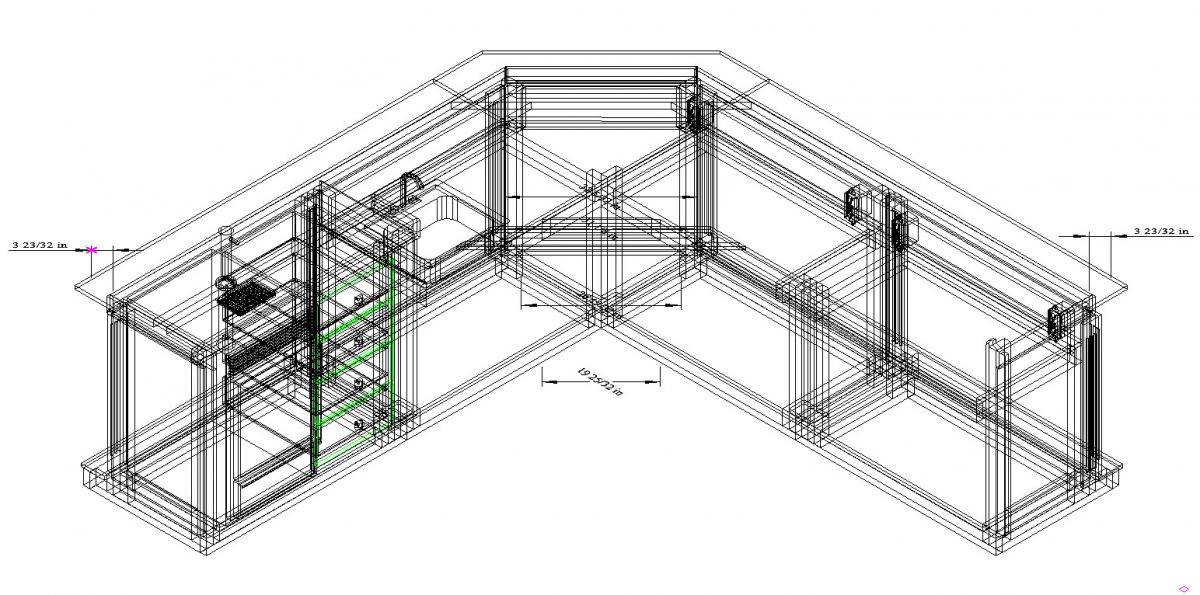

Attachments:

1.



[jesus_ramire]

45 Degree Wet Bar

[brc1263]

Where are the parts list for numbers 95-101 on the 45 degree bar?
